Review: Yamaha’s RX-A3060 Aventage 11.2 Channel 4K HDR Receiver with Dolby Atmos and DTS:X

0

It seems like it wasn’t that long ago that we were going over the 2015 Avantage models and here we are again. Given, a little late than normal as usually we would have had a piece out by now but it took a little longer to get our hands on one.

I have to say that we have become overly biased when it comes to the Aventage series because of three major variables that Yamaha seems to nail every year: performance, features and price. The most (obviously) important variables that make up a product’s score. Keep in mind that we have strict expectations when it comes to audio. We have a large demo room/lab specifically built for testing such products, and it is quite finely acoustically corrected based on so many things, such as the square footage of the room and the items, furniture and building materials within it.

So here we are with the latest RX-A3060 11.2 channel AVR receiver. A 10-star winner, now three years in a row, the Aventage series continues to amaze the AV community. This AVR has also stolen the 2016 Editor’s Choice award this year.

The RX-A3060 is the sixth generation of Yamaha’s 11.2 channel selection in their Aventage line-up, featuring up to 9.2 channels that it can power directly with another 2.0 channels using the pre-outs to another amp (or amps depending on your setup). A flagship among all of their AVR products, it is a powerful addition to your viewing room, let it be a living room or private theater. It features the familiar whopping 150-watts output per channel (8 ohms), feeding just about any speaker you pick off the store shelf. Or if you’re like us, off the shelf of your favorite hi-fi reference audio distributor.

If that isn’t enough, you can pre-out every single channel to an external amp and spend all sorts of money delivering however much wattage you need as the RX-A3060 handles everything else. Of course, the average person will be hitting their budget with the receiver alone, so we will work with that for now.

So some of the biggest features to highlight in regards to the new model include some of the familiar features so many have grown to enjoy with the last few models, with new improvements and some additional options to add to its weight even the more.

You get full passthrough for all of your favorites, including 4K, HDR, 3D, HDCP 2.2 and so forth. It upscales your non-4K content and supports HDMI 2.0 for full 4K/60p. You will find a number of your favorite music services familiar to the Yamaha line, including Pandora, Spotify, Napster, SiriusXM Internet Radio and a general online radio selection via vTuner Internet Radio. You can even stream music from PCs on the network. Now you package in support for all of the latest sound formats such as DTS:X and Dolby Atmos and you once again have the receiver that does it all.

So I’ll start diving into the streaming bit of things since Yamaha has always done good with this. Especially the quality you get from Sirius on these AVRs. Since the RX-A3010 model, where it all started for us, we developed an instant appreciation for listening to SiriusXM on these receivers due to the level of quality we heard in the stream. Channels like Coffee House can through with such clarity that we found ourselves piping the content down to the speakers around the office throughout the day. Since then, sadly, SiriusXM seems to have removed Coffee House from the selection on Yamaha receivers (they have yet to rectify that), but the majority of all the other stations are still there providing plenty of content. Pandora also streams quite good as well, along with just about anything you stream to this with. Mostly thanks to the on-board DAC processors that really bring out the color in compressed or streaming music.

If online isn’t your thing, you can stream nearly anything you want using a wireless device such as your phone or tablet as well as PCs on the network. It supports both Bluetooth and WiFi built right into the receiver, so your options are endless. You can stream from your mobile devices using an app or you can see some of your connected devices on your network such as PCs to tap into their shared media files, directly from the receiver.

Your ability to stream music to the receiver from your mobile device includes full support for MusicCast. MusicCast allows you to stream music from your phone (via the MusicCast app) to wireless speakers and devices on your network, allowing for a single speaker or two, or even multi-room setups. The receiver falls into the list as one of those devices. If you wanted additional speakers and devices, you can find them online or in-store to expand on such with.

On top of MusicCast, you can also stream wirelessly from the receiver itself using Bluetooth. It can wirelessly connection to a pair of headphones or a Bluetooth speaker to stream music to.

The receiver also offers up to multiple zones where you can have separate speakers ran to in your house (wired) so that content can be controlled separately in those rooms. Your ability to do this and the number of zones (max of 3) depends on the number of speakers in your main room because it sacrifices from the 11.2 channel number to allow speakers within those zones. More like you sacrifice those zones in order to obtain the total 11.2 opportunity.

WiFiDirect

To keep adding things up, beyond being able to stream via Bluetooth or WiFi, it also features WiFi Direct mode by streaming its own WiFi SSID. With Wireless Direct mode (WiFi), you are able to connect your device directly to the receiver using your tablet or phone. This is pretty much the same idea as AirPlay but for any of your other devices that support streaming music to devices on the network. Of course, when you make use of this feature, you will not be able to access the internet since the device will be directly connected to the receiver vs your network at that point. This option is usually for users who do not have a wireless router in their home, thus they can use this features as a backup. All of this is done via the AV Controller App (available here in the Apple store or here in the Google Play store).

Of course, on top of that, it also supports Apple Airplay and Spotify Connect.

Speaking of the app, with the AV Controller App, you can manage the various functions of your receiver remotely. This allows you to control volume, DSP selection, input (including streaming options), speaker layout and lots more.

Ad – Buy the Yamaha RX-A3060 online on Amazon

USB support is also superb with the RX-A3060, as it supports all of your favorite formats, including those for the audiophiles out there. Simply plug in a USB drive (thumb stick or drive) and browse all of your files and play them directly from the receiver. It supports, MP3, WAV, WMA, AIFF, FLAC, DSD and MPEG-AAC. All of this, including the same formats if streamed around your network from other devices are enhanced using its high-resolution music enhancer that can bring these tracks to life–up to 96 kHz / 24-bit.

Factor in multiple ultra-high performance ESS Technology 192 kHz / 32-bit DAC processors inside that bring your reference listening to life in all of your movies and music.

Every single time we test out one of these models, we find ourselves listening to hours upon hours of hi-res audio formats such as FLAC and DSD. Blanketing ourselves with music that causes us to float away as we sink deep into our chairs. Given, it does help that we always test using a great selection of reference speakers from companies like Paradigm and Martin Logan.

Now I’ll move over to the latest sound formats you get to enjoy with these receivers. For a few years now, Yamaha has been including support for both Dolby Atmos and DTS:X, improving on such as each new generation model makes its way to the public. These two sound formats are changing the way we experience media by taking you away from your normal channel-driven formats and taking the new approach of object-based sound. With object based sound, it doesn’t matter how many speaker you have in your setup. Where you used to have separate soundtracks in media such as DVDs or Blu-ray, sound can now simply move around the room naturally using a single soundtrack layer, taking advantage of whatever speakers may be present. This allows for one track to rule them allow. The receiver decodes this and shares it across whatever speakers are present. So how much you experience of that field of sound depends on your setup.

The new formats use a new decimal range in your channels of speakers to add speakers to the roof above your head known as “height speakers”. This gives you more of a surround feel and the object driven sound helps to create a more natural experience as the sound moves virtually within the space. This really helps movies to pop right out as you are watching them.

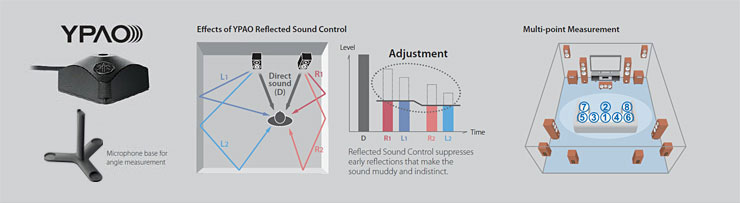

Like models in the past, the RX-A3060 comes with Yamaha’s YPAO microphone that allows the receiver to calibrate itself. You simply place it around the room to help calibrate the system to its environment. Afterware, you can then browse the settings to better fine-tune it to your own preferences if you understand the procedure of such. If not, an average user that doesn’t fully understand the technique of calibration can truly appreciate the results of the automated mic calibration without fussing with anything from there. If you are an audiophile like most of us, you will find it straightforward to tweak it past the mic setup, leaving just a few things it might miss.

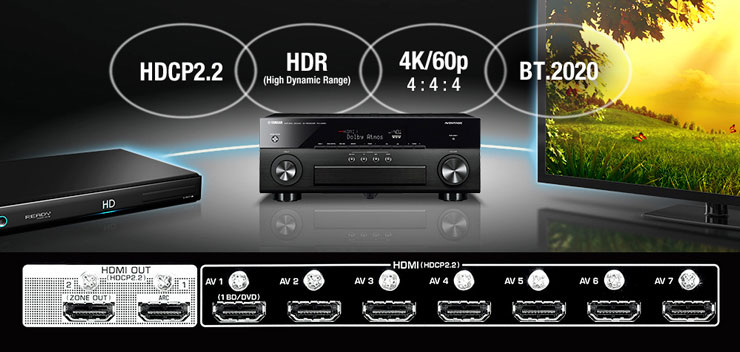

Passthrough is perfect as it maximizes the ability of HDMI 2.0 by passes everything you need through to your display. From full 4K with HDR and HDCP 2.2 support to upscaling of your non-4K, it all looks great on screen. It also supports 21:9 ratio to help remove the black bars above and below some of the material you are viewing, helping to maximize the picture in certain sources.

All 7 HDMI inputs offer passthrough and you have a separate output to your Zone 2 if you are using one that also offers the same. Only the main HDMI output supports ARC if you need it though. ARC stands for audio return channel for content coming from your TV directly (such as its own built-in apps or OTA antenna source).

Upscaling looks great through the receiver given you have a 4K screen connected to it. Else this won’t apply to you much.

If you are familiar at all with the menu interface of the Aventage receivers, nothing much changed here. The features have moved around a little ever so slightly and new options have taken the place of old. However, the organization and feel of the menus are mostly the same–including that wallpapers you can choose from when there is no video being displays behind it. The interface is quite user-friendly, especially if you are an intermediate or advanced user when it comes to tech savviness.

The overall unit itself is large and heavy. Really heavy. Really, nothing has changed here as well. The unit is bulky and tall so it may not fit in all entertainment center setups, so this is something to keep in mind. You are looking at 17-1/8-inches deep, 18-5/8-inches wide and 7-1/2-inches tall. It weighs about 40lbs and you will notice this the moment you attempt to pick it up, so use caution while lifting. You would hate to drop such a fancy piece of equipment. Even more so if you tweak your back or it lands on your foot.

Make sure to plan out its placement well as it may require some customization or a different location than your old unit if it is replacing one. Unless of course you are replacing an older Advantage unit, then nothing will change for you.

For more information on specs and features, you can read below to find videos, images, specs and more.

Our Conclusion

An all-around wonderful AVR. Capable of complementing any environment, the quality of sound these put out by these receivers is attention grabbing. From the wattage it supplies to your speakers to the endless level of customization it offers in all directions. Finely crafted and once again takes the pedestal that Yamaha so proudly gets to sit in, the RX-A3060 is a must have for anyone who considers themself an audio enthusiast looking to maximize as many channels and/or rooms as they can. For everything else, it’s simply layers upon layers of frosting to indulge in.


Buy from Amazon

Our Rating

10 / 10 stars

Average Price*

$1999

*Average price is based on the time this article was published

Related Videos:

Additional Images:

Specifications:

Amplifier Section Channel 9.2
Rated Output Power (1kHz, 2ch driven) 165 W (8 ohms, 0.9% THD)
Rated Output Power (20Hz-20kHz, 2ch driven) 150 W (8 ohms, 0.06% THD)
Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) 230 W (8 ohms, 10% THD)
Dynamic Power per Channel (8/6/4/2 ohms) 175 / 220 / 295 / 410 W
Surround Sound Processing CINEMA DSP Yes (HD3)
DSP Programs 24
Dialog Level Adjustment Yes
Virtual Presence Speaker Yes
Virtual Surround Back Speaker Yes
Dialogue Lift Yes (no presence speakers required)
SILENT CINEMA / Virtual CINEMA DSP Yes (Virtual CINEMA FRONT)
Dolby Atmos Yes
Dolby TrueHD Yes
Dolby Digital Plus Yes
Dolby Pro Logic IIx Yes
DTS:X Yes
DTS-HD Master Audio Yes
Audio Features Pure Direct Yes (with video on mode)
Compressed Music Enhancer Yes
High-resolution Music Enhancer Yes
YPAO multi-point measurement Yes with R.S.C. (Reflected Sound Control), 3D, 64-bit Precision EQ Calculation and Angle Measurement
YPAO Volume Yes
Adaptive DRC (Dynamic Range Control) Yes
Initial Volume & Maximum Volume Setting Yes
A.R.T. Wedge Yes
Bi-amp capability Yes
Audio Delay Yes (0-500 ms)
192kHz/24-bit DACs for all channels ESS SABRE32™ Ultra DAC (for main 7 channels)
Video Features 4K Ultra HD Pass-through and upscaling Yes (4K / 60p, 4:4:4)
HDMI 3D pass-through Yes
HDMI Audio Return Channel Yes
HDMI upscaling Yes (Analog to HDMI / HDMI to HDMI)
Video adjustment Yes
Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync Yes
Extensive Connection HDMI Input/Output 8 (HDMI® 1-7: HDCP2.2 compatible) / 2 (HDCP 2.2 compatible)
HDMI CEC Yes (SCENE, Device Control)
USB Input USB Memory, Portable Audio Player
Network Port Yes
Connectivity Wi-Fi Yes (with Wireless Direct)
AirPlay Yes
Bluetooth Yes (SBC / AAC)
Extensive Connection Front AV Input HDMI / USB / Analog Audio / Composite
Digital Audio Input/Output: Optical 3 / 0
Digital Audio Input/Output: Coaxial 3 / 0
Analog Audio Input/Output 9 (front 1) / 0
Phono Input Yes
Component Video Input/Output 3 / 1
Composite Video Input/Output 5 (front 1) / 1
Preout 11.2-ch
Headphone Output 1
Tuner Section FM/AM Tuner Yes
User Interface On-screen display Graphical User Interface
SCENE SCENE PLUS (12 sets)
App Control Yes (iPhone / iPad / Android phone / tablet)
Web Browser Control Yes
Remote Control Unit Yes (Preset)
Zone Control Zone 2 Audio Output Preout / HDMI
Zone 3 Audio Output Preout
Zone 4 Audio Output HDMI
Powered Zone Zone 2 / 3
Zone Video Output HDMI / Component / Composite
Zone HDMI Yes (Advanced HDMI Zone Switching)
Zone B Output HDMI
Zone GUI Yes
RS-232C Interface Yes
+12V Trigger Output 2
Remote (IR) Input/Output 1 / 1
Party Mode Yes
General Standby Power Consumption (IR only) ?0.1W
Auto Power Standby Yes
ECO mode Yes
Dimensions (W x H x D) 17-1/8” x 7-1/2” x 18-5/8” (with antenna up: 17-1/8” x 9-3/4” x 18-5/8”)
Weight 39.9 lbs.



Further Feature Breakdown:

High Quality Parts for Optimum Performance

The whole is greater than the sum. Every single part in an AV receiver affects the sound quality. For AVENTAGE models, extra time is taken to find (or develop) the exact parts needed to achieve the highest performance possible. Sound technicians go through a testing process to, in effect, “tune” the receiver’s sound.

Total Purity

Enjoy fine sound quality. The Total Purity Concept, which Yamaha has been cultivating for many years, encompasses high drive amp technology, high purity preamplification, anti-vibration technology and independent pure power supplies. All models have fully discrete power amplifiers that help minimize distortion. They also adopt pure independent power supplies, allowing dedicated power supplies for the analog and digital circuitry to prevent digital noise from affecting analog circuitry. The anti-vibration heat sinks are designed to suppress vibration from transistors and sound pressure. Independent power supplies for the DACs are designed to further eliminate noise on certain models. Down to every detail, these AV receivers are designed with full emphasis on the highest possible sound quality.

Symmetrical Power Amplifier

Designed to the details. The interior of the unit has been precisely planned, circuit-routed and built so that the left and right channels are physically and electrically isolated. This naturally maximizes channel separation but also greatly improves signal to noise ratio and also helps to achieve a wide open sound stage for a superior receiver.

H-shaped Frame

Reinforced for rigidity. The interior of the receiver is reinforced with cross members in an H shape to provide an extremely rigid and stable frame. This reduces chassis vibration to virtually zero even during high volume output (seemingly minor vibrations can affect the sound), maintaining the highest audio quality.

Aluminum Front Panel

Shielded from noise. All of the AVENTAGE components feature the same sleek, clean design, with an elegant aluminum front panel and silky touch volume/selector knobs. The aluminum front panel is used to effectively shield sensitive circuitry from external noise and electronic radiation generated by dimmer switches, fluorescent lighting, video monitors and so on. This ensures optimum sonic performance in the widest range of installation environments.

MusicCast

Access all of your music with a simple app and wirelessly stream it throughout your home using your existing Wi-Fi® network.

    • Stream it all. Listen to Pandora®, Spotify, Napster®, SiriusXM Internet Radio, thousands of free internet radio stations and the music stored on your smart devices and computers.
    • Wireless connectivity. All MusicCast products are fully loaded with Wi-Fi, Bluetooth and AirPlay®.
    • Expand to a whole home audio experience. When you’re ready, add MusicCast wireless speakers, sound bars or other devices in up to 9 other rooms and listen throughout your home.
  • No wires, easy installation. By using MusicCast, you don’t need to fuss with placing wires through walls into other rooms.

Bluetooth®

Play your favorite streaming service. This AV receiver is equipped with Bluetooth functionality to let you enjoy easy wireless music playback from mobile devices. The Compressed Music Enhancer from Yamaha is now optimized for Bluetooth audio transmissions to ensure that your music will have vivid, lively sound quality during wireless playback.

Bluetooth Output

In and out. The RX-A3060 is equipped with the latest Bluetooth technology, making wireless operation more convenient than ever. You can stream music from the RX-A3060 to Bluetooth headphones for private listening or to Bluetooth speakers.

Easily Set Up MusicCast with Your Smartphone or Tablet

Use your smartphone or tablet together with the MusicCast CONTROLLER app to operate the receiver and change settings quickly and easily. The same Controller app functions as a remote control for all your MusicCast-compatible devices too.

Wi-Fi and Wireless Direct

Smarter connectivity. Built-in Wi-Fi allows for a wireless connection with your wireless router, greatly simplifying system connections for enjoying networked audio (PC / NAS) and music streaming services. If a Wi-Fi router is not available, the unique Wireless Direct feature not only allows you to stream music directly from your smartphone or tablet via the AV Controller App, AirPlay® etc., but also allows for control of the AV receiver as well.

Network Functions

Access more. This AV receiver provides a variety of network functions that enable you to access more sources and also enhance operation. You can connect the receiver to your home network or internet to enjoy Internet Radio, Spotify®, Pandora® or music stored on a NAS and home PC. The AV Controller app (from iTunes App Store or Google play) lets you control various functions from your iPod, iPhone, iPad or Android phones / tablets.

AirPlay®

This AV receiver supports AirPlay, which means they can accept wireless music streaming from iPod touch®, iPhone® or iPad®, as well as from iTunes on Macs or PCs. This makes it easy to enjoy music from your mobile devices or computer on your home theater system. You can use view metadata such as song title, artist name as well as album art via AV receiver’s on-screen display.

Spotify Connect

Millions of songs. With the Spotify app on your mobile device, you have instant access to millions of songs. Now you can stream those songs to your networked Yamaha AV receiver by using Spotify Connect. Just hit play to start streaming music. When you listen to Spotify outside on your mobile device and come inside, the song immediately streams to your Yamaha AV receiver allowing no interruption to your music playback. You can also personalize playlists and receive phone calls while listening to music on Spotify.

Dolby Atmos®

Enter a new world of sound with Dolby Atmos®. It transports you from an ordinary moment into an extraordinary experience with captivating, multidimensional sound that fills your room with amazing richness and depth. Music, people, and objects come alive in breathtaking detail and flow in precise choreography all around you, making you feel like you are truly there. The combination of Dolby Atmos and Yamaha AV receivers will fill the room with multidimensional sound that makes you feel as if you are right in the middle of the story unfolding on the screen.

DTS:X

DTS:X is the next generation object-based, multi-dimensional audio technology from DTS.

Unbound from channels, DTS:X conveys the fluid movement of sound to create an incredibly rich, realistic and immersive soundscape – in front of, behind, beside and above the audience – more accurately than ever before. The combination of DTS:X and Yamaha AV receivers will fill the room with multidimensional sound that makes you feel as if you are right in the middle of the story unfolding on the screen.

CINEMA DSP HD3

Thrilling realism in surround sound. CINEMA DSP HD3 literally takes the surround sound experience to new heights. By using four CINEMA DSP engines with advanced 3D processing and two front presence channels in a 9.2-channel configuration, it gives the sound field an enhanced vertical dimension for more realistic and exciting movie sound.

Speaker Layout Patterns

Multiple placement patterns are available for presence speakers that support Dolby Atmos & DTS:X, creating a sound field that’s ideal for your setup. Any layout can be appropriately reproduced, including the three-dimensional space of CINEMA DSP as well as both sound formats.

YPAO – Reflected Sound Control optimizes the listening environment and fundamental high quality audio design takes full advantage of the detailed spatial localization capability of Dolby Atmos and DTS:X. The combination of these object based surround technologies and Yamaha AV receivers will fill the room with multidimensional sound that makes you feel as if you are right in the middle of the story unfolding on the screen.

Furthermore YPAO R.S.C. which optimizes the listening environment and fundamental high quality audio design takes full advantage of the detailed spatial localization capability of Dolby Atmos.
The combination of Dolby Atmos and Yamaha AV receivers will fill the room with multidimensional sound that makes you feel as if you are right in the middle of the story unfolding on the screen.

4K, HDR and BT.2020

Darker blacks, whiter whites and more vivid colors. This unit supports the latest HDMI® standards thanks to the transmission of 4K video at 60 frames per second (pass-through only). Fully enjoy the high definition video quality of 4K without degradation along with HDCP 2.2 that fully complies with the latest copyright protection, a standard for 4K video transmission. It also supports the wider color gamut of BT.2020 pass-through.

Support for 21:9 Aspect Ratio

The 21:9 aspect ratio support is designed to show films recorded in the Cinema Scope format. When these films are viewed in the usual 16:9 ratio, you see black bars at the top and bottom of the screen; 21:9 eliminates these bars. By supporting 21:9 resolution, this model will be able to pass it through so that movies and games feel much more immersive.
*This feature is not supported with some PC monitors with specific IT specification design.

Yamaha Video Processing

Upscaling for smoothness. With expertise in engineering exceptional video projectors, Yamaha has produced various advanced processing techniques that are applied to this AV receiver’s video upscaling capabilities. These include edge adaptive deinterlacing to smooth out jaggy noise, motion adaptive deinterlacing to detect moving or still images and multi-cadence detection that includes 3-2 pull-down.

Advanced Graphical User Interface

Multilingual user interface. The latest graphical user interface from Yamaha has a high-resolution display with clear, easy-to-use menus and also includes a selectable status bar that shows input source, volume level, DSP mode and audio format. The GUI provides a choice of eight languages: English, French, German, Spanish, Italian, Russian, Japanese and Chinese and can be displayed over both normal and 3D pictures.

Ultra-high Performance DACs

Superior sound quality. An ultra-high performance ESS Technology 192 kHz / 32-bit ES9016A DAC produces an unsurpassed sound stage with up to 124 dB dynamic range, super low distortion and noise level. High-quality ESS ES9006A DACs power the presence channels. This AV receiver’s sound reproduction is for the most discriminating of listeners

Codec Support

This AV receiver is compatible with many audio formats such as Dolby® True HD and DTS-HD Master Audio. It is also compatible with high-resolution audio codecs such as DSD / AIFF / FLAC / WAV / Apple® Lossless. You will enjoy the excellent sound quality of these various high-resolution audio codecs from the USB input on the front panel or from network connected devices.

High-resolution Music Enhancer

Hear even more. The Compressed Music Enhancer in this model has the capability to process and restore compressed music (up to 96 kHz / 24-bit) further heightening the musicality of the original content.

Gapless Playback

No intermissions. Many live and classical albums have no gaps in the music. Gapless playback ensures that there are no pauses between audio files. This provides playback with no interruptions, the way it was meant to be heard.

YPAO– R.S.C. (Reflected Sound Control with 3D, 64-bit Precision EQ and Angle Measurement)

Sound optimized. YPAO-R.S.C. analyzes the room acoustics with the included YPAO microphone to tune your system for the best sound in your unique room. It employs R.S.C. (Reflected Sound Control) to correct early reflections for studio-quality surround sound. YPAO 3D provides automatic sound parameter optimization that maximizes the 3D sound field effectiveness of CINEMA DSP HD3 as well as Dolby Atmos and DTS:X. 64-bit precision EQ calculation achieves the most natural room acoustics possible. Additionally, DSP Effect Normalization adjusts the room acoustics according to the reflected sounds of each CINEMA DSP program.

YPAO Volume

Still hear everything. Human ears have less sensitivity to high and low frequencies, especially at lower volumes. YPAO Volume applies loudness EQ correction to automatically adjust high and low frequency levels as volume changes. Using the YPAO measurement results, EQ correction is optimized to your system settings and listening environment

Virtual Presence and Surround Back Speakers

Be virtually surrounded. The Virtual Presence Speaker function makes full use of center and surround speakers to create virtual presence speakers. Enjoy CINEMA DSP 3D Mode surround sound even in environments where speaker installation is limited. In addition, This model also features a Virtual Surround Back Speaker function. Even without using surround back speakers, you can experience more natural sound from behind you.

Virtual CINEMA FRONT Surround Sound

Enjoy virtual surround sound. Even when it is impossible to install surround speakers behind the listening position, Virtual CINEMA DSP reproduces virtual surround sound filled with realism, from only front speakers. The Virtual CINEMA FRONT feature lets you place two surround speakers and a center speaker at the front to enjoy virtual surround sound with even higher quality and resolution, as well as superior rear virtual sound localization. Adding two additional front presence speakers provides a three-dimensional sound field that gives you a feeling of its height and depth and of the vertical movement of the sound. You get more flexibility to arrange your speakers inside the room, along with easy enjoyment of high quality surround sound.

Rich Bass Reproduction

Feel your lows. This exclusive low-range enhancement technology delivers richer bass than you would expect from smaller sized speakers while maintaining good localization and sound balance even with compact front speakers. When a subwoofer is used, it improves the volume of the entire low range of the speaker system, not only the front speakers, but also enhancing the bass from the subwoofer. You’ll enjoy video and music with sound that has exceptional power and presence.

Subwoofer Trim

Improved sound imaging. The Subwoofer Trim Control enhances the low frequencies by avoiding overlap with the front speaker output. This will result in a cleaner, more focused soundstage while providing a seamless frequency response. When subwoofer frequency overlap occurs in conventional systems, the overall sound is “pushed” toward the subwoofer. Subwoofer Trim Control takes care of this by separating the low subwoofer frequencies cleanly, thus stabilizing the front stage while providing a well-balanced enhanced bass sound

Advanced HDMI® Zone Switching

Full video and audio capability in a second zone. While standard HDMI zone switching can only send HD video programs to the main and second zones, advanced HDMI® zone switching from Yamaha adds the capability to choose from all audio and video sources for playback in a second zone. An on-screen graphical user interface makes it easy to browse and select content to enjoy from the second zone no matter what is being played in the Main Zone.

Zone Extra Bass for Added Bass in Zone 2 and 3

Use the Extra Bass feature to amplify bass tones, not just in your main room but also on systems in other rooms (Zones 2 and 3). Even with compact or in-wall speakers which typically lack bass, you’ll hear all your sources with powerful bass sound.

Zone Volume Equalizer for Optimum Sound Balance in Zone 2 and 3

Automatically adjusts bass and treble balance to match the volume on systems in other rooms (Zone 2 and 3). Enjoy movies and music with a natural sound quality balance even at low volumes.

Intelligent Amp Assign

Intelligent design meets multizone audio. Intelligent Amp Assign automatically assigns amplifier channels to certain speakers, depending on what speaker layout is selected. For example, in a multi-channel system, when the second zone is turned off, all channels will be used in the Main Zone. However, when a second is powered on, the power to the two surround back channels will automatically be redirected to the two speakers in the second zone and the Main Zone will receive two-channels of power. Similarly, when CINEMA DSP 3D is on, the two Front Presence speakers will be powered and not the two surround back speakers. When CINEMA DSP 3D is off, this situation is reversed. Thanks to Intelligent Amp Assign, there’s no need to switch the speaker cables on the rear of the AV receiver.

AV Controller App

This AV Controller App will turn your smartphone or tablet into a two-way remote control for your networked Yamaha products. Take control and change inputs, volume, DSP modes and multi-zone operations. With the Music Play feature, stream music directly from your smartphone or tablet to Yamaha network products and enjoy high quality music through your AV system. This App not only controls Yamaha AV receivers, it also controls Blu-ray Disc Players as well.
It’s great to have all this control at your fingertips – and best of all it’s free in major app stores!

Device Select & Demo

Networked Yamaha devices are automatically displayed in the AV Controller Apps main menu screen. If your device is not recognized, make sure your smartphone or tablet is connected to the same network and press the refresh button.

AV Receiver Control

Change volume with the large volume dial or use the minimized volume buttons at the bottom of the screen.

Input Select

Each input has its own icon and name. Personalize the experience and rename, move* or hide these icons.

*To move icons, press and hold them until they lift from the page and move them to the desired location. Press the edit button at the top left to rename or hide the icon.

Music Play*

Browse, search and play music stored on the device with full access to cover art and track information.

*This function is not supported by RX-V2065, RX-V3900, DSP-AX3900, RX-Z7, DSP-Z7, HTR-6295 AV receivers and Blu-ray Disc players. Certain audio formats are not supported.

DSP Mode Select

Transform your listening experience with Cinema DSP. Easily select different DSP modes to transform the sound fields in the listening area to replicate the acoustics of concert halls, actual movie theaters and more.

DSP Parameter Adjustment*

Intuitively adjust the DSP parameter with basic pinch and zoom adjustments. In the advanced mode you can make more accurate adjustments to the DSP level, room size and liveness.

*This function is available from 2014 network AV receivers or later.

SCENE Selection*

Save a SCENE* to remember an input selection and a DSP mode. Recall the SCENE to automatically power on the receiver, select the input and change the DSP mode all with the push of one button.

*Press and hold a SCENE button on the front panel of the receiver and/or the provided remote for more than three seconds to save a SCENE.

Option Menu

Depending on the source, you can select and operate the tone controls, dialogue level adjustment and other commands from the option menu.

Zone Control*

Take full control of a second zone with the AV Controller App. Control things like power, input selections, volume and more with wireless control over the network. Additionally, it is possible to rename each zone and customize their icons as well.

*The number of zones varies by model.

Blu-ray Disc™ Player Control

You can control the functions of Yamaha Blu-ray Disc players such as power, play, pause, skip and cursor navigations. It is also possible to pair* the Yamaha Blu-ray Disc player with specific inputs inside the app so that the BD players remote is engaged automatically after selecting its input inside the app.

*To pair select the settings button on the device select page.

Designed for Tablet

The AV Controller App is optimized for iPad® and Android tablets.

  • Single window operation without switching layers
  • Supports landscape or portrait mode
  • Replaceable wallpaper
  • Single page control operations of BD remote
  • Designed for iPad®
  • Designed for Android 3.0 or higher
  • Supports 10″ (1280 x 768) and above
  • Switchable layout for 7″ tablets

DSP Adjustment

Create sound fields at home. This AV receiver is equipped with a variety of sound programs that utilize original DSP technologies from Yamaha. These sound programs allow you to easily create sound fields like actual movie theaters or concert halls in your room to enjoy natural stereoscopic sound fields. It is now possible to use the AV Controller App to adjust the DSP parameters in a basic or advanced mode to match the mood of your favorite movie or music album.

AV SETUP GUIDE

Install with ease. The AV SETUP GUIDE makes it much easier to perform the set up process with the Yamaha AV receiver. This app assists you with cable connections between the AV receiver and source devices. Additionally, it guides you through various settings such as speaker connections, TV and source device connections and power amplifier assignments. System illustrations and actual AV receiver images help you understand how to make the connections between devices. It is available in multiple languages and is designed for iOS and Android tablets.

Extra-convenient SCENE PLUS

Save your favorites. The SCENE PLUS function simplifies operation by providing one touch power-on along with selection of the desired source and the appropriate DSP programs. SCENE PLUS offers a choice of 12 SCENE selections, four of which can be assigned to the second zone in a multi-zone system. SCENE PLUS can be selected from the front panel, remote control, GUI and even from the AV Controller App.

ECO Mode

Go green. When ECO mode is turned on it can reduce power consumption by about 20 percent.




Are you a manufacturer or distributor that would like us to test something out for review? Contact us and we can let you know where to send the product and we will try it out.

10.0 Absolutely Fantastic!
  • Final 10
  • User Ratings (0 Votes) 0
Share.

About Author

James

Designer, Editor and Reviewer for Poc Network, ProAudio and Mobile Nations.

James enjoys spending most of his time as an audio engineer and technician for the live music industry when he isn’t running around the office here juggling an intense workload. He can also be found frequently in the nearby mountainous ranges, scrambling rocks and rappelling down large sections.

Leave A Reply

*
